Edelstahl
SS HC 6803 TN UG SI3N4 keraaminen laakeri
SS HC 6803 TN UG SI3N4 keraaminen laakeri
Normaalihinta
€49,90 EUR
Normaalihinta
Alennushinta
€49,90 EUR
Yksikköhinta
kohti
Sisältää verot.
Toimituskulut lasketaan kassalla.
Noudon saatavuutta ei voitu ladata

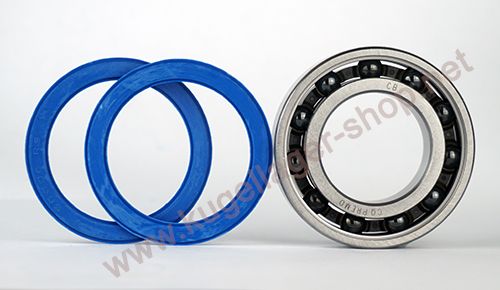

Deep Groove Ball Bearing - 17x26x5 mm (resp. 26x17x5 mm)
| Loadability: |  |
| Corrosion resistance: |  |
| Impermeability: |  |
| Speed range: |  |
| SKU | 27078-O |
|---|---|
| Type | Deep Groove Ball Bearing |
| Specialty | Hybrid bearings: ceramic balls (Si3N4) / stainless steel rings (AISI 420) / nylon cage (PA66) / ungreased |
| Dimensions (mm) - Inside x outside x width | 17 x 26 x 5 mm |
| Cover | Open + 2 rubber seals included |
| Rings material | Stainless steel (AISI420 / 1.4028 / X30Cr13); Hardened stainless steel (with iron content) Hardness: ≥55HRC; 230° C max. |
| Ball material | Si3N4: Black ceramic (88% Si3N4 / 4% Al2O3 / 4% Y2O3 / 4% other materials); Grade: G10 (precision balls); Hardness: 75~80HRC; 1050° C max. |
| Cage material | Nylon / polyamide cage ("resin crown") - (PA66); Low coefficient of friction; Very resistant; 80° C max. |
| Tolerance class | ABEC-1 bearing (DIN/ISO P0); Industrial bearing |
| Clearance | In the overlap area of normal (C0) and increased (C3) internal clearance |
| Radial play | min.: 0.011 mm / max.: 0.025 mm |
| Inner diameter (mm) | 17 |
| Inner diameter tolerance | +0 / -0.008 mm |
| Outer diameter (mm) | 26 |
| Outer diameter tolerance | +0 / -0.009 mm |
| Width (mm) | 5 |
| Outer ring surface | Cylindrical outer ring (standard) |
| Angle (Inner ring / Outer ring) | 90°/90° (Standard) |
| Conductivity and magnetism | Electrically conductive: Rings yes (but no electrical conductivity between the inner and outer ring; the balls and the cage do not conduct electricity) - Magnetic: Rings yes (but balls and cage are not magnetic) |
| Inner diameter (inch) | 0,6692913386 |
| Outer diameter (inch) | 1,0236220472 |
| Width (inch) | 0,1968503937 |
