NSK

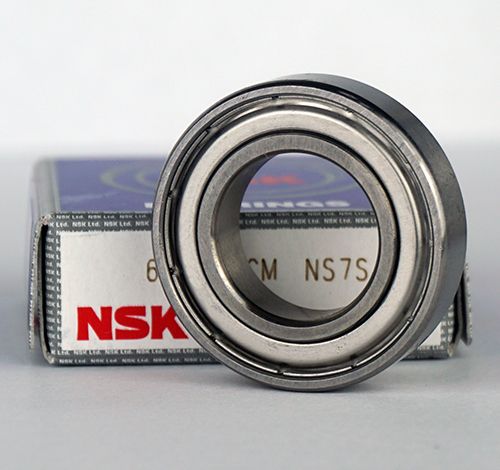

6803 ZZ CM NSK (MADE IN JAPAN)
6803 ZZ CM NSK (MADE IN JAPAN)
Normaalihinta
€14,90 EUR
Normaalihinta
Alennushinta
€14,90 EUR
Yksikköhinta
/
kohti
Sisältää verot.
Toimituskulut lasketaan kassalla.
Noudon saatavuutta ei voitu ladata
Deep Groove Ball Bearing - 17x26x5 mm (resp. 26x17x5 mm)
Loadability: | ![]() |
Corrosion resistance: | ![]() |
Impermeability: | ![]() |
Speed range: | ![]() |
SKU | 27732 |
---|---|
Manufacturer | NSK |
Type | Deep Groove Ball Bearing |
Specialty | Automotive quality (extra hardened) |
Dimensions (mm) - Inside x outside x width | 17 x 26 x 5 mm |
Cover | ZZ / 2Z / Z: Metal cover on both sides (ST12; contactless / with gap to the inner ring); 150° C max. |
Rings material | Chrome alloyed steel (100Cr6 / SAE 52100 / 1.3505); hardened; Hardness: ~ 64HRC; 150° C max. High purity and extra hardened |
Ball material | Chrome-alloyed steel (100Cr6 / SAE 52100) - grade: G10 (precision balls) - hardness: ~64 HRC, high purity and extra hardened |
Cage material | Steel cage (ST12); 150° C max. |
Tolerance class | ABEC-3 bearing (DIN/ISO P6); Precision bearing |
Clearance | C0 (Standard) |
Radial play | min.: 0.003 mm / max.: 0.018 mm |
Inner diameter (mm) | 17 |
Inner diameter tolerance | +0 / -0.007 mm |
Outer diameter (mm) | 26 |
Outer diameter tolerance | +0 / -0.008 mm |
Width (mm) | 5 |
Outer ring surface | Cylindrical outer ring (standard) |
Angle (Inner ring / Outer ring) | 90°/90° (Standard) |
Conductivity and magnetism | Electrically conductive: Yes - Magnetic: Yes |
Inner diameter (inch) | 0,669291 |
Outer diameter (inch) | 1,02362 |
Width (inch) | 0,19685 |
