CQ

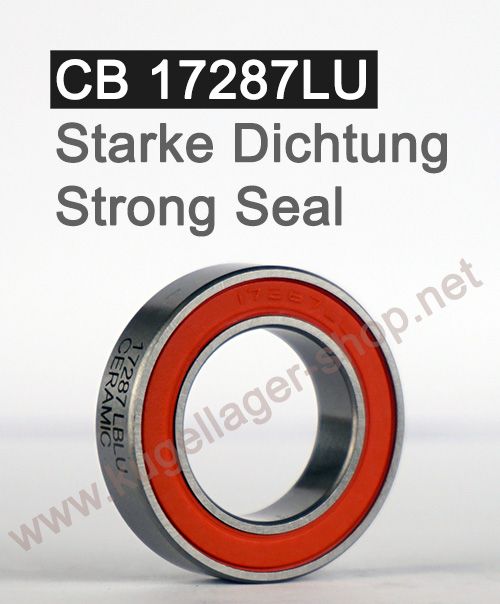

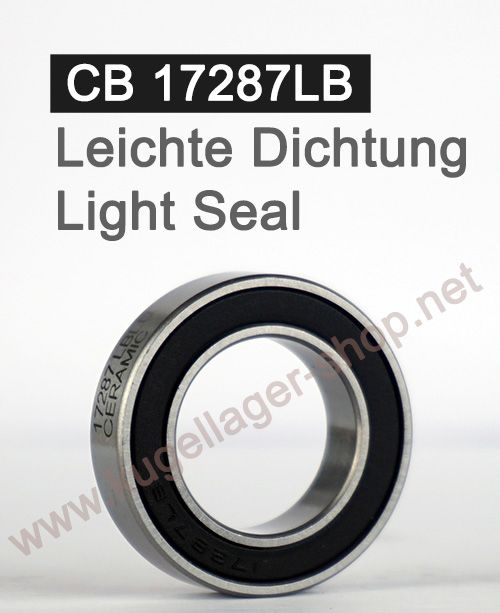

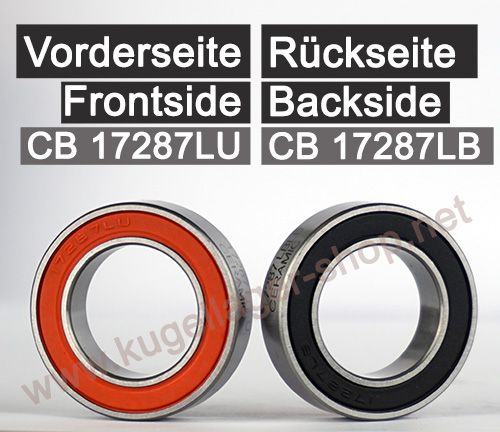

17287 LBLU CB keraaminen laakeri
17287 LBLU CB keraaminen laakeri
Normaalihinta
€39,90 EUR
Normaalihinta
Alennushinta
€39,90 EUR
Yksikköhinta
kohti
Sisältää verot.
Toimituskulut lasketaan kassalla.
Noudon saatavuutta ei voitu ladata
Deep Groove Ball Bearing - 17x28x7 mm (resp. 28x17x7 mm)
| Loadability: |  |
| Corrosion resistance: |  |
| Impermeability: | |
| Speed range: | |
| SKU | 29269 |
|---|---|
| Manufacturer | CQ |
| Type | Deep Groove Ball Bearing |
| Specialty | Hybrid bearing with ceramic balls |
| Dimensions (mm) - Inside x outside x width | 17 x 28 x 7 mm |
| Cover | V / LLB: Rubber seals (NBR) on both sides which run in separate "V" grooves; High sealing effect with low seal friction. 100-120° C max. |
| Rings material | Chrome alloyed steel (100Cr6 / SAE 52100 / 1.3505); Hardened; Hardness: ~60 HRC; 150° C max. |
| Ball material | Si3N4: Black ceramic (88% Si3N4 / 4% Al2O3 / 4% Y2O3 / 4% other materials); Grade: G10 (precision balls); Hardness: 75~80HRC; 1050° C max. |
| Cage material | Nylon / polyamide cage ("resin crown") - (PA66); Low coefficient of friction; Very resistant; 80° C max. |
| Tolerance class | ABEC-3 bearing (DIN/ISO P6); Precision bearing |
| Clearance | C0 (Standard) |
| Radial play | min.: 0.003 mm / max.: 0.018 mm |
| Inner diameter (mm) | 17 |
| Inner diameter tolerance | +0 / -0.007 mm |
| Outer diameter (mm) | 28 |
| Outer diameter tolerance | +0 / -0.008 mm |
| Width (mm) | 7 |
| Outer ring surface | Cylindrical outer ring (standard) |
| Angle (Inner ring / Outer ring) | 90°/90° (Standard) |
| Conductivity and magnetism | Electrically conductive: Rings yes (but no electrical conductivity between the inner and outer ring; the balls and the cage do not conduct electricity) - Magnetic: Rings yes (but balls and cage are not magnetic) |
| Inner diameter (inch) | 0,669291 |
| Outer diameter (inch) | 1,10236 |
| Width (inch) | 0,27559 |
