Neutral
15307-2RS EMQ / MR15307-LLB
15307-2RS EMQ / MR15307-LLB
Regular price
€14,90 EUR
Regular price
Sale price
€14,90 EUR
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

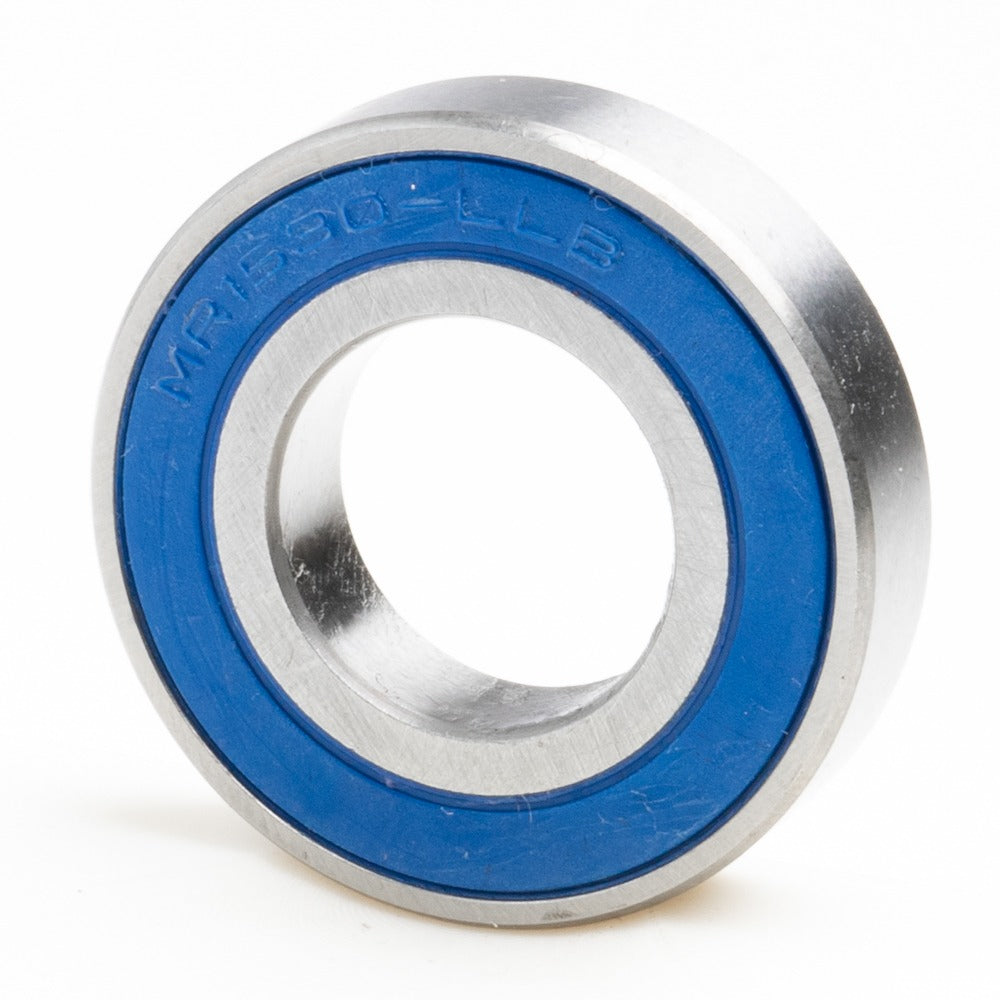

Deep Groove Ball Bearing - 15x30x7 mm (resp. 30x15x7 mm)
| Loadability: |  |
| Corrosion resistance: |  |
| Impermeability: |  |
| Speed range: | |
| KU | 28431 |
|---|---|
| Manufacturer | Neutral |
| Type | Deep Groove Ball Bearing |
| Specialty | Special size bearing |
| Dimensions (mm) - Inside x outside x width | 15 x 30 x 7 mm |
| Cover | V / LLB: Rubber seals (NBR) on both sides which run in separate "V" grooves; High sealing effect with low seal friction. 100-120° C max. |
| Rings material | Chrome alloyed steel (100Cr6 / SAE 52100 / 1.3505); Hardened; Hardness: ~60 HRC; 150° C max. |
| Ball material | Chrome steel (100Cr6 / SAE 52100) - Grade: G10 (precision balls) - Hardness: ~60 HRC |
| Cage material | Steel cage (ST12); 150° C max. |
| Tolerance class | ABEC-3 bearing (DIN/ISO P6); Precision bearing |
| Clearance | C0 (Standard) |
| Radial play | min.: 0.003 mm / max.: 0.018 mm |
| Inner diameter (mm) | 15 |
| Inner diameter tolerance | +0 / -0.007 mm |
| Outer diameter (mm) | 30 |
| Outer diameter tolerance | +0 / -0.008 mm |
| Width (mm) | 7 |
| Outer ring surface | Cylindrical outer ring (standard) |
| Angle (Inner ring / Outer ring) | 90°/90° (Standard) |
| Conductivity and magnetism | Electrically conductive: Yes - Magnetic: Yes |
| Inner diameter (inch) | 0,59055 |
| Outer diameter (inch) | 1,1811 |
| Width (inch) | 0,27559 |
