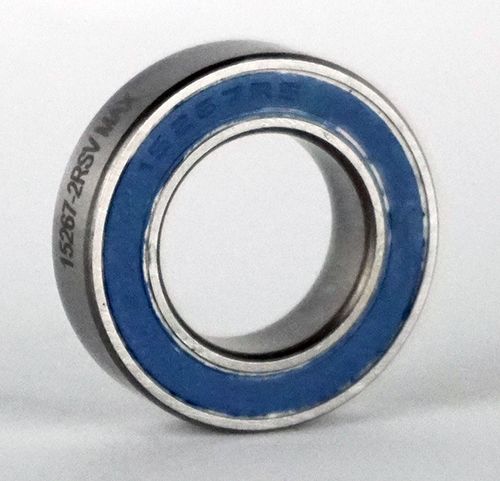

15267 2RS MAX (15267VRS / 2RSV = 15267V-2RS)
15267 2RS MAX (15267VRS / 2RSV = 15267V-2RS)
Regular price
€11,90 EUR
Regular price
Sale price
€11,90 EUR
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Full complement ball bearing - 15x26x7 mm (resp. 26x15x7 mm)
| Loadability: |  |
| Corrosion resistance: |  |
| Impermeability: |  |
| Speed range: |  |
| SKU | 27393 |
|---|---|
| Manufacturer | Neutral |
| Type | Full complement ball bearing |
| Specialty | Full ball / no cage (no full turns - high load) |
| Dimensions (mm) - Inside x outside x width | 15 x 26 x 7 mm |
| Cover | Rubber seals / strong contact seals and/or seals that run in a separate groove (good sealing, easy running and little wear of the sealing lip) |
| Rings material | Chrome alloyed steel (100Cr6 / SAE 52100 / 1.3505); Hardened; Hardness: ~60 HRC; 150° C max. |
| Ball material | Chrome steel (100Cr6 / SAE 52100) - Grade: G10 (precision balls) - Hardness: ~60 HRC |
| Cage material | No cage: Full complement bearing (FC / MAX) filled with maximum quantity of balls. |
| Tolerance class | ABEC-3 bearing (DIN/ISO P6); Precision bearing |
| Clearance | C0 (Standard) |
| Radial play | min.: 0.003 mm / max.: 0.018 mm |
| Inner diameter (mm) | 15 |
| Inner diameter tolerance | +0 / -0.007 mm |
| Outer diameter (mm) | 26 |
| Outer diameter tolerance | +0 / -0.008 mm |
| Width (mm) | 7 |
| Outer ring surface | Cylindrical outer ring (standard) |
| Angle (Inner ring / Outer ring) | 90°/90° (Standard) |
| Conductivity and magnetism | Electrically conductive: Yes - Magnetic: Yes |
| Inner diameter (inch) | 0,59055 |
| Outer diameter (inch) | 1,02362 |
| Width (inch) | 0,27559 |
