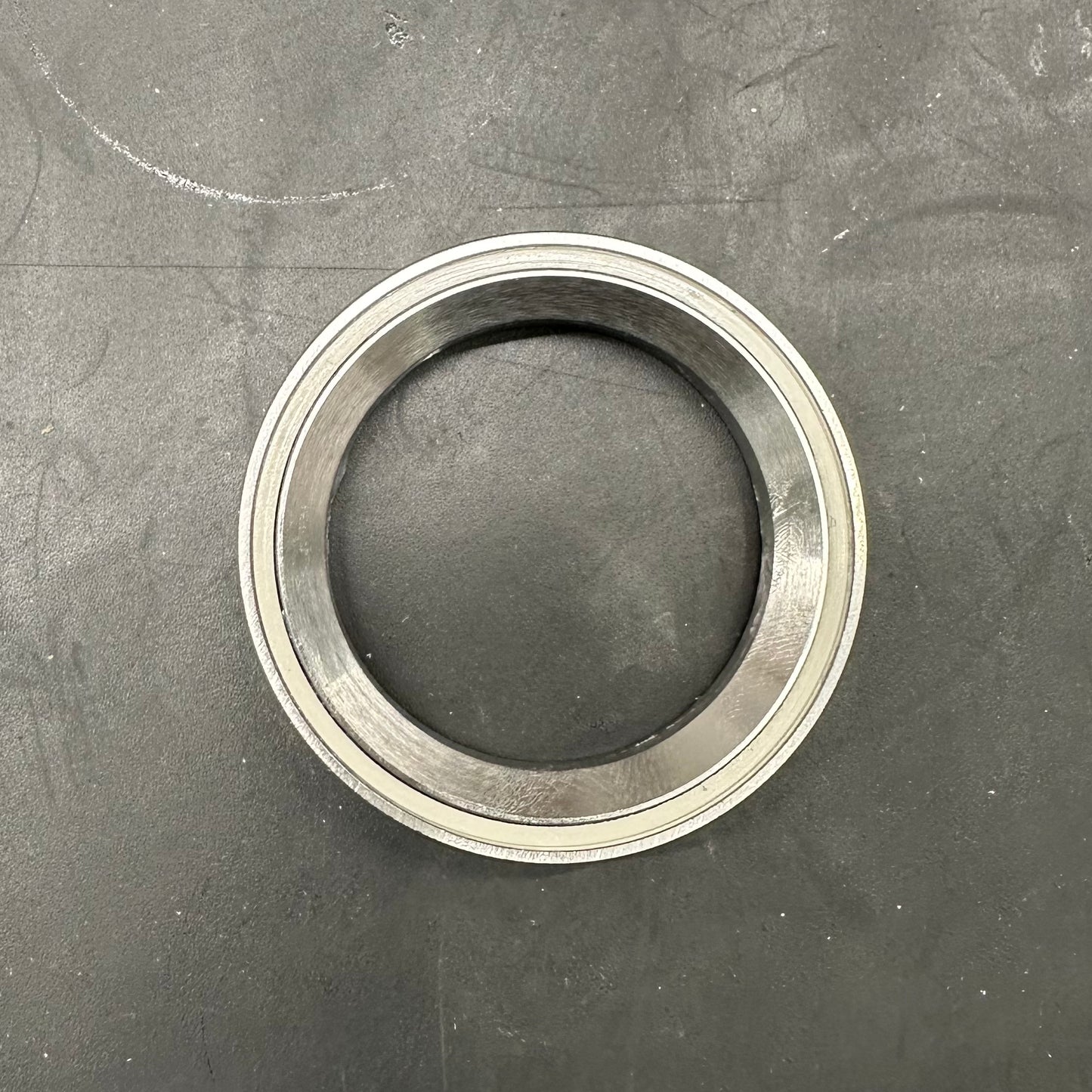

MH-P17 45°/45° SS (ALT. AC3446.8-45/45-RS, TH-970E, TH MR168)
MH-P17 45°/45° SS (ALT. AC3446.8-45/45-RS, TH-970E, TH MR168)
Normaalihinta
€40,16 EUR
Normaalihinta
Alennushinta
€40,16 EUR
Yksikköhinta
kohti
Sisältää verot.
Toimituskulut lasketaan kassalla.
Noudon saatavuutta ei voitu ladata

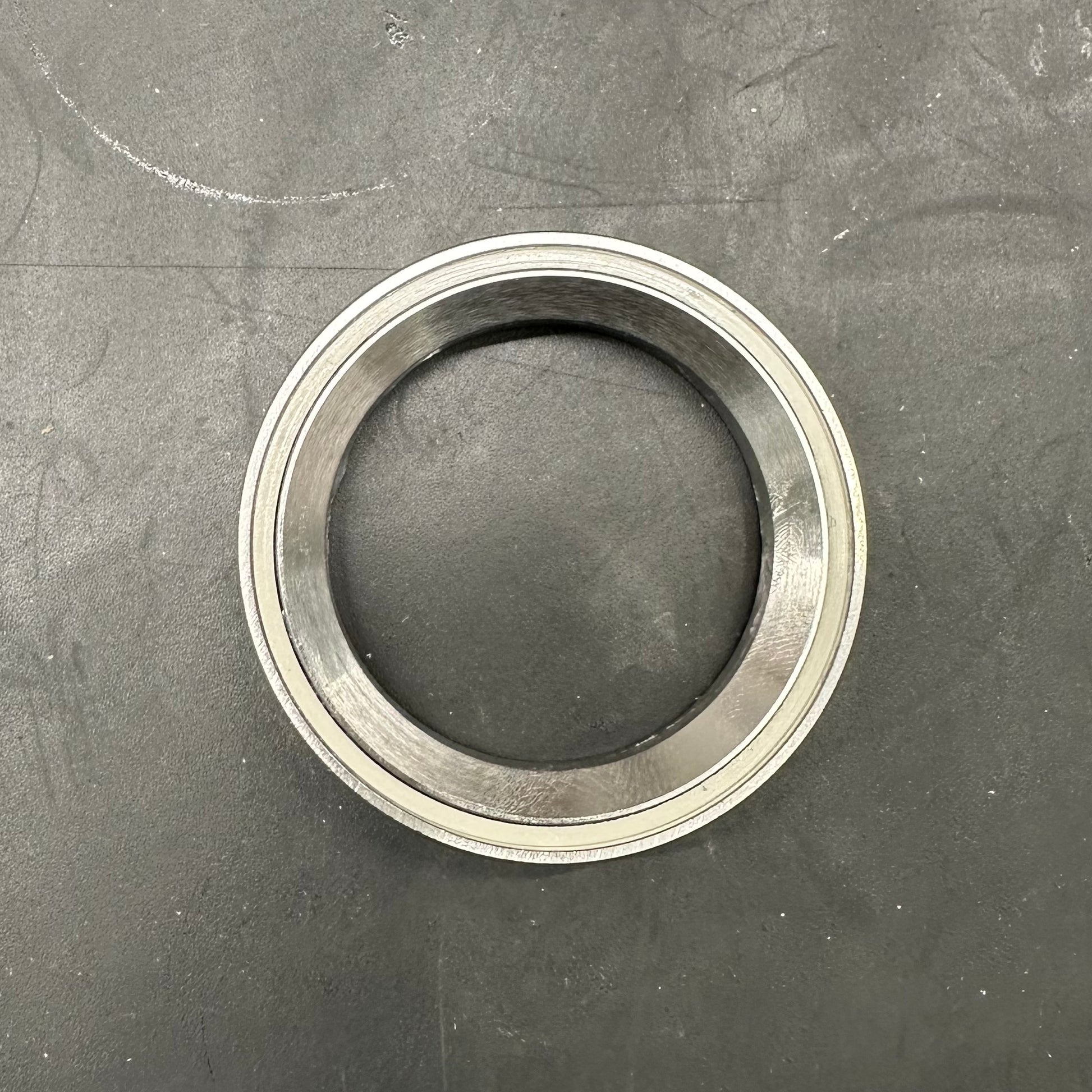

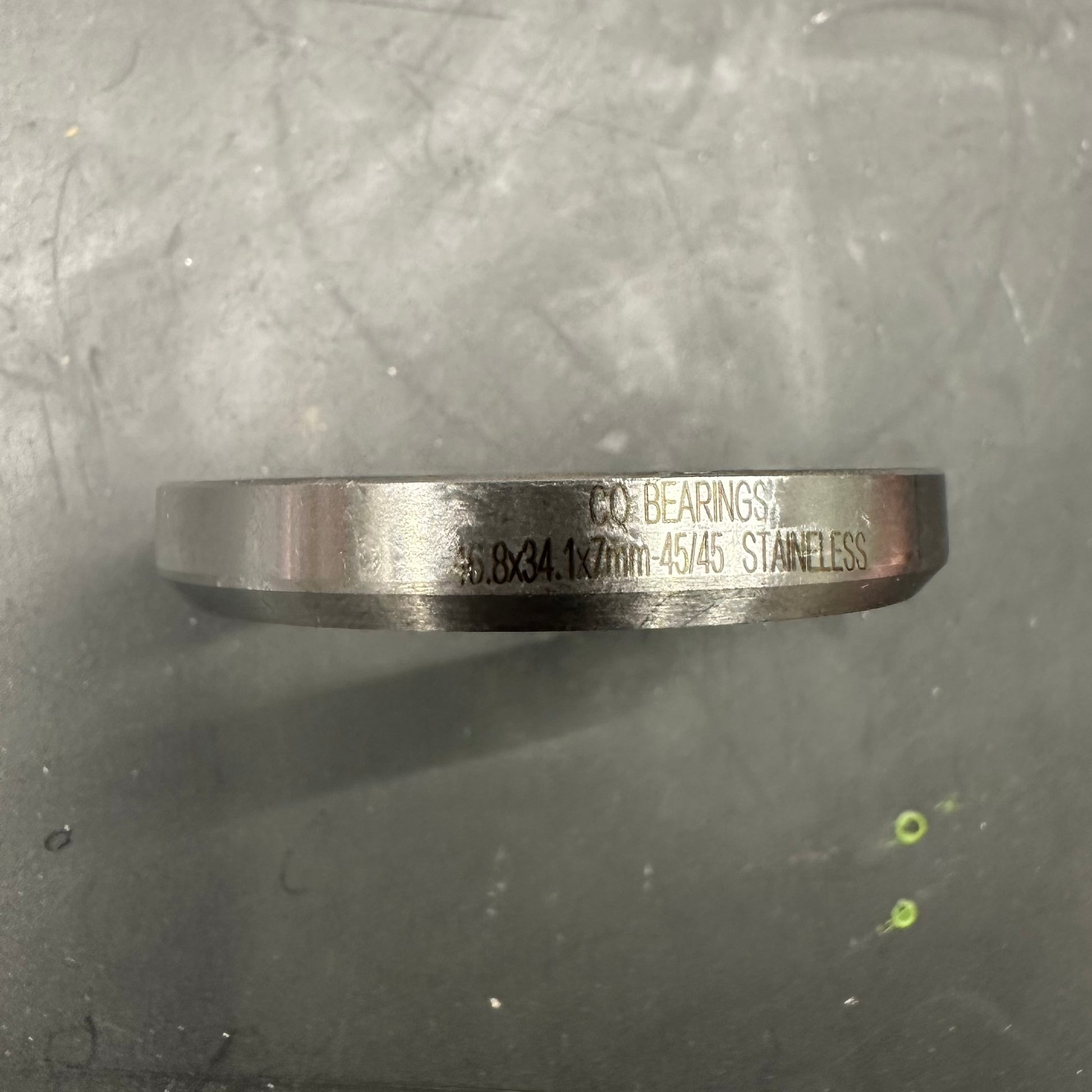

Bearing for headset / steering head bearing - 34.1x46.8x7 mm(resp. 46.8x34.1x7 mm)
| Loadability: |  |
| Corrosion resistance: |  |
| Impermeability: | |
| Speed range: |  |
| SKU | SSMH-P17 |
|---|---|
| Manufacturer | Neutral |
| Type | Bearing for headset / steering head bearing |
| Specialty | Stainless steel bearing |
| Dimensions (mm) - Inside x outside x width | 34.1 x 46.8 x 7 mm |
| Cover | Rubber seals / strong contact seals and/or seals that run in a separate groove (good sealing, easy running and little wear of the sealing lip) |
| Rings material | Stainless steel (AISI420 / 1.4028 / X30Cr13); Hardened stainless steel (with iron content) Hardness: ≥55HRC; 230° C max. |
| Ball material | Stainless steel (1.4028 / AISI420 / X30Cr13) - Grade: G10 (precision balls) - hardness: ≥55HRC |
| Cage material | Nylon / polyamide cage ("resin crown") - (PA66); Low coefficient of friction; Very resistant; 80° C max. |
| Tolerance class | ABEC-3 bearing (DIN/ISO P6); Precision bearing |
| Clearance | C0 (Standard) |
| Radial play | min.: 0.006 mm / max.: 0.02 mm |
| Inner diameter (mm) | 34.1 |
| Inner diameter tolerance | +0 / -0.010 mm |
| Outer diameter (mm) | 46.8 |
| Outer diameter tolerance | +0 / -0.009 mm |
| Width (mm) | 7 |
| Outer ring surface | Cylindrical outer ring (standard) |
| Angle (Inner ring / Outer ring) | 45°/45° |
| Conductivity and magnetism | Electrically conductive: Yes - Magnetic: Yes (ferritic stainless steel) |
| Inner diameter (inch) | 1-1/4“ |
| Outer diameter (inch) | 1,84 |
| Width (inch) | 0,27559 |
